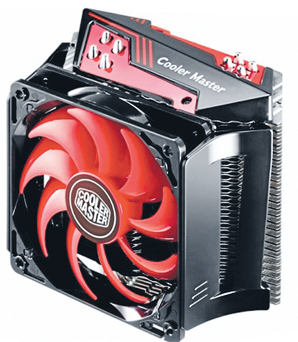

Cooler Master X6 Rr-x6nn-19pr

Unique honeycomb fin structure achieves maximum surface area coverage and cooling performance. Heat sink base and fins angled for better cold air intake from chassis fans – creating optimal air flow and heat dissipation. Ease installation with a quick-snap fan bracket design. Extra air flow provided by a special air duct. Wide range PWM fan (600 – 1900 R.P.M.) providing versatile performance while idle and at full load. Model RR-X6NN-19PR-R1 CPU Socket Intel Socket: LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775 * AMD Socket: FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU Support Intel: Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron AMD: FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™ Dimension 157.3 x 113.8 x 163.3 mm (6.2 x 4.5 x 6.4 in) Heat Sink Dimensions 156.4 x 84.2 x 151.7mm (6.2 x 3.3 x 6.0 in) Heat Sink Material Copper Base / 6 Heat Pipes / Aluminum Fins Heat Sink Weight 732g (1.61 lb) Heat Pipe Dimensions Ø6mm Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1 in) Fan Speed 600 – 1,900 RPM (PWM) ± 10% Fan Air Flow 18.8 – 59.5 CFM ± 10% Fan Air Pressure 0.29 – 2.30 mmH2O ± 10% Fan Life Expectancy 40,000 hrs Noise Level 8 – 27 dBA Bearing Type Long Life Sleeve Bearing Connector 4-Pin Rated Voltage 12 VDC Rated Current 0.2A Power Consumption 2.4W Fan Weight 110g (0.24 lb) Weight 1034g (2.28 lb) Product Description Unique honeycomb fin structure achieves maximum surface area coverage and cooling performance. Heat sink base and fins angled for better cold air intake from chassis fans – creating optimal air flow and heat dissipation. Ease installation with a quick-snap fan bracket design. Extra air flow provided by a special air duct. Wide range PWM fan (600 – 1900 R.P.M.) providing versatile performance while idle and at full load. Model RR-X6NN-19PR-R1 CPU Socket Intel Socket: LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775 * AMD Socket: FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU Support Intel: Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron AMD: FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™ Dimension 157.3 x 113.8 x 163.3 mm (6.2 x 4.5 x 6.4 in) Heat Sink Dimensions 156.4 x 84.2 x 151.7mm (6.2 x 3.3 x 6.0 in) Heat Sink Material Copper Base / 6 Heat Pipes / Aluminum Fins Heat Sink Weight 732g (1.61 lb) Heat Pipe Dimensions Ø6mm Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1 in) Fan Speed 600 – 1,900 RPM (PWM) ± 10% Fan Air Flow 18.8 – 59.5 CFM ± 10% Fan Air Pressure 0.29 – 2.30 mmH2O ± 10% Fan Life Expectancy 40,000 hrs Noise Level 8 – 27 dBA Bearing Type Long Life Sleeve Bearing Connector 4-Pin Rated Voltage 12 VDC Rated Current 0.2A Power Consumption 2.4W Fan Weight 110g (0.24 lb) Weight 1034g (2.28 lb)
