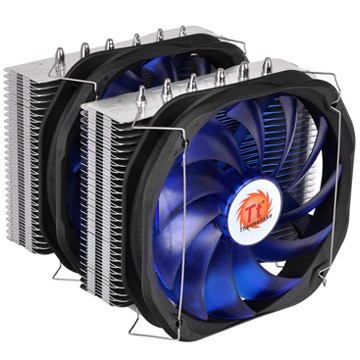

Frio Extreme

Features – Ultimate Over-clocking Design Structure, support up to 250W. – The Combination of VR and PWM Control Function Fan. – Universal Socket Compatibility. Detailed Feature Ultimate Over-clocking Design Structure, support up to 250W Dual tower heat-sink with 0.4mm aluminum fins provide large surface for heat dissipation. 6 x Ø6 mm-U-shape copper heat pipes accelerate heat conductivity. Mirror-finished copper base, provide perfect contact with CPU. Premium thermal grease maximizes heat transfer from the CPU onto the copper base for faster dissipation. The Combination of VR and PWM Control Function Fan Dual 14cm high performance blue blade designed fans, spins from 1,200 to 1,800RPM. Combination of VR and PWM functions, switchable upon user’s preferences. Tool-less and Easy installation design for quicker disassemble and assemble the fan module. Universal Socket Compatibility & Accessory Package All-in-one back-plate design, support all Intel and AMD platform Universal socket support : Intel: LGA 2011, 1366, 1155, 1156, 775 AMD: FM1, AM3+, AM3, AM2+, AM2 Dimension Intel Motherboard Installation Step 1 Step 2 Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers evenly. Put the two Intel mounting bars along with the four long screws and secure them with the four nuts. Step 3 Step 4 For LGA2011: Screwing the LGA 2011 screw onto motherboard tightly and put the two Intel mounting bars on the LGA 2011 screws. Fasten the four nuts onto the mounting bars tightly. Install the fan clips onto the heat-sink separately Step 5 Step 6 Applying a thin layer of thermal grease onto the CPU. Screw the heat-sink onto the motherboard with the mounting plate tightly. Step 7 Step 8 Fix the two fans onto the heat-sink with fan clips separately. Connect two fan cords to the controller close to the VR Knob. Link the power cord to the CPU FAN slot and the right slot of the controller. Step 9 Connect the 4-pin wire of controller to the motherboard’s CPU fan connector. Installation is done. AMD Motherboard Installation Step 1 Step 2 Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers evenly. Put the two AMD mounting bars along with the four long screws and secure them with the four nuts. Step 3 Step 4 Install the fan clips onto the heat-sink separately. Applying a thin layer of thermal grease onto the CPU. Step 5 Step 6 Screw the heat-sink onto the motherboard with the mounting plate tightly. Fix the two fans onto the heat-sink with fan clips separately. Step 7 Step 8 Connect two fan cords to the controller close to the VR Knob. Link the power cord to the CPU FAN slot and the right slot of the controller. Connect the 4-pin wire of controller to the motherboard’s CPU fan connector. Installation is done.
