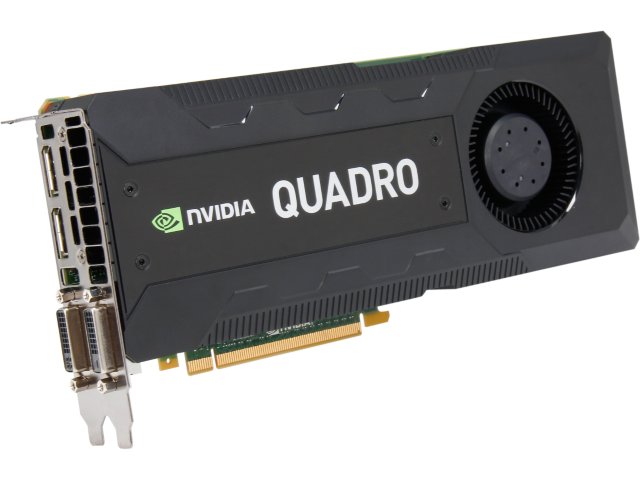

Nvidia Quadro 8 Gb Gddr5 256-bit Vcqk520

Product SpecificationsCUDA Cores2304GPU Memory8GB GDDR5Memory Interface256-bitMemory Bandwidth192GB/sSystem InterfacePCI Express 3.0 x16Maximum Power Consumption150 WEnergy Star EnablingYesThermal SolutionUltra-quiet active fansinkForm Factor4.376” H x 10.50” L, Dual SlotDisplay ConnectorsDVI-I DL + DVI-D DL + DP 1.2 + DP 1.2DisplayPort 1.2YesDisplayPort with AudioYesDVI-D Single-Link ConnectorVia included adaptersVGA SupportVia included adapterNumber of Displays Supported4Maximum DP 1.2 Resolution4096 x 2160 at 60Hz (directly attached)Maximum DVI-I DL Resolution2560 x 1600 at 60HzMaximum DVI-I SL Resolution1920 x 1200 at 60HzMaximum VGA Resolution2048 x 1536 at 85HzHDCP SupportYesProfessional 3D SupportYes, via included stereo connector bracketQuadro Sync CompatibleYesHD SDI Capture/Output CompatibleYesNVIDIA GPU Direct CompatibleYesGraphics APIsShader Model 5.0, OpenGL 4.4, DirectX 11Compute APIsCUDA, DirectCompute, OpenCLNVIEWYesNVIDIA MosaicYes (Windows 8.1, 8, 7, and Linux)NVIDIA 3D Vision and 3D Vision ProYesWarranty3 YearsPNY Part NumberVCQK5200-PBMinimum System RequirementsMicrosoft Windows® 8.1, 8, 7, Vista, Linux®, or Solaris®PCIe x16 expansion slot2GB or more of system memory, 8GB recommended200MB of available disk space for full driver installationBlu-ray or DVD-ROM driveInternet connection (if preferred for driver installation)DisplayPort, DVI, or VGA compatible display(s)Package ContainsNVIDIA Quadro K5200 professional graphics board6-pin auxiliary power cableStereo connector bracketTwo DisplayPort to DVI-D SL adaptersDVI-I to VGA adapterDriver DVD for Windows 8.1, 8, 7, and Vista (32- and 64-bit)Printed QuickStart GuideFeatures & Benefits3D Graphics ArchitectureScalable geometry architectureHardware tessellation engineNVIDIA GigaThread engine with dual copy enginesShader Model 5.0 (OpenGL 4.4 and DirectX 11)Up to 16K x 16K texture and render processingTransparent multisampling and super sampling16x angle independent anisotropic filtering128-bit floating point performance32-bit per component floating point texture filtering and blending64X full scene antialiasingFXAA and TXAA full scene antialiasingDecode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)Dedicated H.264 encoderBlu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)Quadro Boost automatically adjusts the GPU engine throughput to maximize application performance.Parallel Computing CapabilitiesSMX architecture (streaming multi-processor design that delivers greater processing and efficiency)HyperQ (allows multiple CPU cores to simultaneously utilize a single K5200 GPU to execute independent compute kernels)Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU)API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and FortranNVIDIA Parallel Data Cache hierarchy (configurable L1 and unified L2 caches)Error-Correction Code (ECC) memory64KB of RAM (configurable partitioning of shared memory and L1 cache)Advanced Display Features30-bit color (10-bit per each red, green and blue channel)Support for any combination of four connected displaysDisplayPort 1.2 (up to 4096 x 2160 at 60Hz and 2560 x 1600 at 120Hz)DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)DisplayPort 1.2, HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)10-bit internal display processingNVIDIA 3D Vision™ technology, 3D DLP, interleaved, and other 3D stereo format supportFull OpenGL quad buffered stereo supportUnderscan/overscan compensation and hardware scalingSupport for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management ToolsSupport for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync and NVIDIA Warp/Blend technologiesDisplayPort and HDMI Digital AudioDolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AACData rates of 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHzWord sizes of 16-bit, 20-bit, and 24-bitGPU FeaturesNVIDIA CUDA ArchitectureParallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.NVIDIA Scalable Geometry EngineDramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.Large Framebuffers with Ultra-Fast BandwidthLarge GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.Hyper QSlashes CPU idle time by allowing multiple CPU cores to simultaneously utilize a single Kepler GPU, dramatically advancing programmability and efficiency.NVIDIA Parallel DataCache™Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.Dynamic ParallelismSimplifies GPU programming by allowing programmers to easily accelerate all parallel nested loops – resulting in a GPU dynamically spawning new threads on its own without going back to the CPU.Dual Copy EnginesEnables the highest rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation.Bindless TexturesDramatically increases the number of unique textures available to shaders at run-time, enabling vastly more different materials and richer texture detail in scenes.NVIDIA Streaming MultiprocessorDelivers more processing performance and efficiency through this new, innovative streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic.H.264 encoderDedicated H.264 encode engine that independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications (requires application support).PCI Express 2.0 ComplianceSupports data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16GB/sec bi-directional (32 GB/s bi-directional and 16GB/s in each direction.)Unified Driver Architecture (UDA)Guarantees forward and backward compatibility with software drivers, simplifying upgrading to a new Quadro solution whenever you’re ready.Ultra-Quiet DesignSilent cooling design enables lower acoustics for an ultra-quiet desktop environment.NVIDIA GPU BoostMaximum application performance through automatic adjustment of the GPU clock to take maximum advantage of the power and thermal headroom of the card in real-time.Image QualityFull-Scene Antialiasing (FSAA)Up to 64X FSAA for dramatically reducing visual aliasing artifacts or “jaggies,” resulting in unparalled image quality and highly realistic scenes.NVIDIA FXAA and TXAAReduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU’s CUDA cores and new film-style AA techniques.GPU TessellationQuadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.16K Texture and Render ProcessingProvides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.Display FeaturesNVIDIA Quadro Mosaic TechnologyEnables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.Multi-Display SupportAll-new display engine drives up to four displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3840 x 2160 at 60Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.NVIDIA NVIEW Advanced Desktop SoftwareThis software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.DisplayPort 1.2 Support (with Audio)Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 3840 x 2160 at 60Hz ). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.HD SDI Capture and OutputIndustry’s only GPU-accelerated solution for real-time acquisition, processing, and delivery of high-resolution SDI video, across traditional and now 3D video broadcast, environments. Supports uncompressed 8-, 10-, 12-bit SDI via available Quadro SDI Capture and Quadro SDI Output cards.Quadro SyncSynchronizes the display and image output from one system or across a cluster of multiple systems. The Quadro Sync board manages up to 16 displays from 4 GPUs in one system, reducing the number of machines needed to power a video wall or multi-projector visualization environment, and supports image and frame synchronization between up to four GPUs when running Quadro Mosaic or independent GPUs in cluster. Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters.NVIDIA 3D Vision and 3D Vision ProAdvanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.OpenGL Quad Buffered Stereo SupportProvides a smooth and immersive 3D Stereo experience for professional applications.Professional 3D Stereo SynchronizationEnables robust control of stereo effect through a dedicated three-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics card.Deep Color Processing and DisplayPreserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.Software SupportNVIDIA CUDA Parallel Computing ArchitectureQuadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, and computation fluid dynamics.NVIDIA GPUDirectNVIDIA GPUDirect capability increases compute performance when data throughput or latency reduction are key considerations by allowing direct access to GPU memory by 3rd-party devices such as SDI video adapters, NICs and SSDs.NVIDIA GPUDirect for VideoNVIDIA GPUDirect for Video technology allows 3rd party hardware to communicate directly with NVIDIA GPUs. By taking advantage of this new API the historical issues of introducing too much delay or latency are gone. With NVIDIA GPUDirect for Video, devices are fully synchronized and the CPU doesn’t waste cycles copying data between device drivers.Multi-GPU TechnologyNVIDIA Multi-GPU TechnologyNVIDIA Multi-GPU powered workstations combine the visualization and interactive design capability of multiple GPUs, by leveraging any combination of Quadro and Tesla GPUs to intelligently scale the performance of your application and dramatically speed up your production workflow.- See more
