Evga X99 Ftw Motherboard Intel Socket Lg

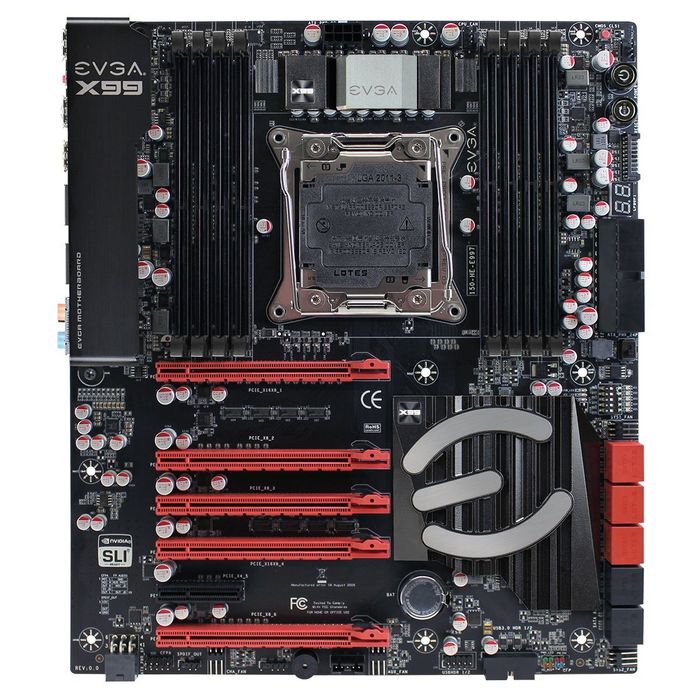

Intel X99 Core i7 (LGA2011-v3) DDR4 Up to 3000 MHz+ Product Description EVGA X99 FTW Motherboard Intel Socket LGA 2011-3 with DDR4 2666Mhz Motherboard 150-HE-E997-KR Model Brand EVGA Model X99 FTW (150-HE-E997-KR) Supported CPU CPU Socket Type LGA 2011-v3 CPU Type Core i7 (LGA2011-v3) Chipsets Chipset Intel X99 Memory Number of Memory Slots 8×288pin Memory Standard DDR4 Up to 3000 MHz+ Maximum Memory Supported 128GB Expansion Slots PCI Express 3.0 x16 5 x PCI Express 3.0 x16 PCI Express x4 1 x PCI Express x4 Storage Devices SATA 6Gb/s 10 x SATA 6Gb/s SATA RAID 0/1/5/10/JBOD Onboard Video Onboard Video Chipset None Onboard Audio Audio Chipset Realtek ALC1150 Audio Channels 8 Channels Onboard LAN LAN Chipset Intel I217 Second LAN Chipset Intel i210 Max LAN Speed Dual 10/100/1000Mbps Rear Panel Ports RJ45 2 x RJ45 USB 3.0 4 x USB 3.0 USB 1.1/2.0 6 x USB 2.0 Audio Ports 5 Ports Internal I/O Connectors Onboard USB 2 x USB 3.0 + 2 x USB 2.0 Physical Spec Form Factor Extended ATX Dimensions (W x L) 12″ x 10.375″ Features Features BIOS Type – AMI / UEFI Software – EVGA E-LEET Tuning Utility Fan Header – 6
