Gigabyte Motherboard Ga-x99-gaming 5p

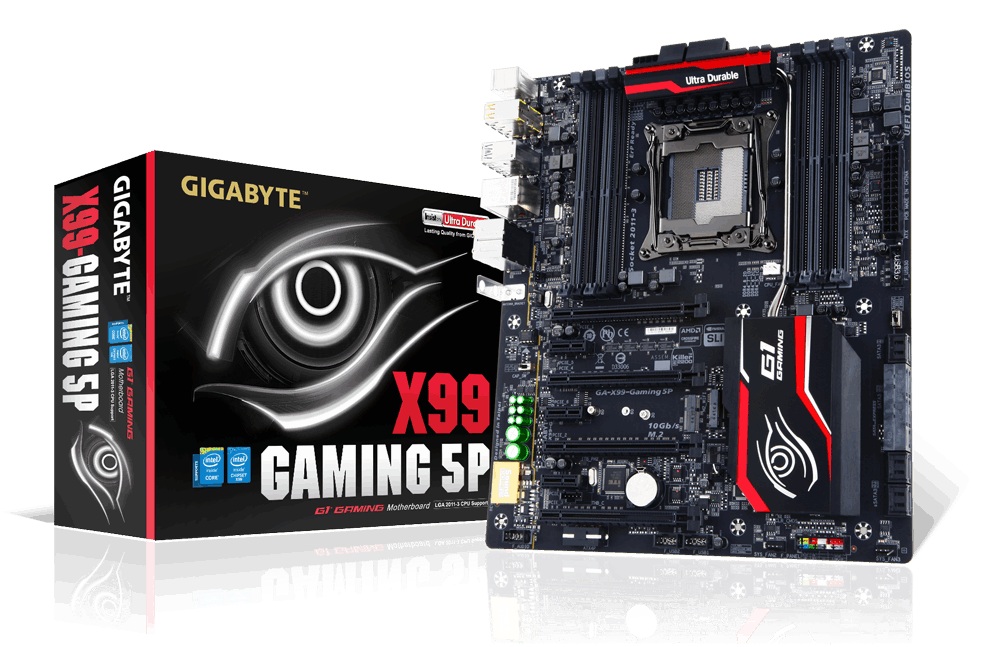

Supports New Intel® Core™ i7 Processor Extreme Edition Support for DDR4 XMP up to 3333MHz Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs 4-Way Graphics with Premium PCIe Lane Dual M.2 Technology for SSD Drive and WIFI card Gold Plating for CPU socket, Memory DIMMs and PCIe slots Onboard Creative Sound Core3D™ quad-core audio processor AMP-UP Audio technology with exclusive Upgradable OP-AMP Product Description GIGABYTE MOTHERBOARD GA-X99-Gaming 5P Support for DDR4 XMP up to 3333MHz DDR4 memory modules are available at a stock frequency of 2133MHz, but memory vendors encode XMP profiles which can automatically modify the frequency and timings of the supported memory modules to work in par with your CPU. With the X99 Champion Series, GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 3333MHz. What is XMP? The synchronization of the memory modules with the CPU is crucial for good performance of your system. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance. * XMP Profile support may vary depending on memory module. Please refer “Memory Support List” for more information. G1™ Performance Genuine All Digital Power Design GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel®Core™ i7 Extreme Edition CPUs. IR Digital PWM & IR PowIRstage® ICs This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage®ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability. Server Level Chokes GIGABYTE X99 series motherboards feature Server Level Chokes. • Server level reliability • High current capacity • New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area. Long Lifespan Durable Black™ Solid Caps GIGABYTE X99 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability, with ultra-low ESR no matter how high the CPU loading. Single Package Design IR® has leveraged it’s world class packaging technology developed for the DirectFET®, improving the thermal capability and layout of the PowIRstage® significantly over that of other MCM packages. Single Package Design* VS. Multi-Chip Design Other MOSFET layout implementations use a multi-chip, side-by-side arrangement of the high and low side MOSFETs and driver ICs, taking up significant board real estate and creating more electrical leakage. 3-Way / 4-Way Graphics with Premium PCIe x16 Lane Up to *320Gb/s Bandwidth GIGABYTE X99 motherboards feature a unique PCI Express design that utilizes 100% of all 40 lanes from the CPU when in a 4-Way or 3-Way graphics configuration. Standard designs limit all 4 main PCIe lanes to x8 (64Gb/s) bandwidth, but thanks to the onboard external clock generator combined with the direct connection of one of the x16 lanes to the CPU (switchless design), GIGABYTE X99 motherboards can unlock the full bandwidth available and provide the best graphics bandwidth possible to the user. Dual M.2 Technology for SSD Drive and WIFI Card Fast Data Transfer and Advanced WIFI Networking GIGABYTE X99-Gaming 5P motherboard featuring Dual M.2 technology provides users PCI-Express connectivity for SSD devices and for 11AC WIFI + Bluetooth 4.0 card. Delivering up to 10 Gb/s data transfer speeds, M.2 offers considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices. GIGABYTE’s stacked design optimizes the PCB real-estate usage, allowing more components to be efficiently added without compromising any space. Next Generation SATA Express Connector GIGABYTE X99 series motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives. G1™ Audio GIGABYTE AMP-UP Audio™ Technology GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies. GIGABYTE Direct Audio Route Design • Shortest route, no wasted trace. • Less crosstalk & less EMI. • AMP very close to audio jack for lowest noise. • Better signal quality and better audio quality. The shortest route is always the best for audio signals. The GIGABYTE X99 G1™ Gaming motherboards feature the shortest audio communication paths between each critical component, from chipset to audio jack. This reduces the crosstalk along the way, and the very close proximity of the AMP to the audio jack directly results in lower noise disturbance. With this high quality audio design, GIGABYTE G1™ Gaming motherboards are able to bring users better signal quality for the absolute best audio experience. Independent Right and Left Audio Channel PCB Layers Locating the right and left audio channels on separate PCB layers, GIGABYTE X99 series motherboards are able to eliminate channel crosstalk and maintain the best audio quality. Creative® Sound Core3D™ Quad-Core Audio Processor Combining world’s first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite. + Harnessing the power of a Dedicated Audio Processor to offload workload from CPU + Total solution from Creative (Hardware +Software) + Richer overall audio experience Creative SBX Pro Studio Audio Suite SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music. GIGABYTE Exclusive : Upgradable OP-AMP * IC Extractor not included. Customizable + Users can choose audio quality based on individual listening preferences. + Wide availability of additional OP-AMPs.Low Cost way to dramatically improve audio quality + Improve audio dynamics and overall sound-quality with little cost. + No need for expensive speakers or high-end audio equipment. Exclusive onboard ‘Gain Boost’ selector switches + Select either standard 2.5x or high-amplification 6x mode. + 6x mode is ideal for high impedance speakers and headphones High End Audio Capacitors GIGABYTE X99 Gaming motherboard uses the highest quality Nichicon high end audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. Gold Plated Audio Hardware GIGABYTE G1™ Gaming motherboards pack top quality gold plated audio connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Creative Sound Core3D™ processor is also shielded by a gold plated cover which eliminates electrostatic interference. Quad DAC-UP USB Ports Featuring Quad USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible. G1™ Networking Killer Networking NO LAG, JUST FRAG! Select GIGABYTE X99 series motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions. The Killer™ E2200 features Advanced Stream Detect technology, which identifies and prioritizes all network traffic to ensure important applications that require high-speed connectivity are prioritized over less important traffic. G1™ Look All New Heat Sink with LED Design GIGABYTE X99 series motherboards feature new heat sink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE X99 Series motherboards offer cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters. Ambient LED GIGABYTE X99 motherboards feature LED lighting for the audio guard light path and the back panel LED, providing a cool, custom look to your rig. These lights are now programmable, so you can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music. Rear Panel LED The above photo is for reference. Ambient LED Modes: • Still Mode – LEDs stay continuously lit. • Beat Mode – LEDs will blink to the beat of the music played through the audio jack. • Pulse Mode – LEDs will blink slowly. • Off – LEDs will be tuned off. Gold Plating CPU socket GIGABYTE X99 motherboards come equipped with gold plating for the CPU socket, 4 PCIe slots and over the 8 DIMM slots, which means that enthusiasts can enjoy better connectivity, absolute reliability and longevity for the diverse connectors overtime, without having any concerns about corroded pins and bad contacts. Safer Design Around Screw Mounting Holes Don’t worry anymore about accidental damage while mounting your motherboard to you chassis. GIGABYTE X99 motherboards all feature a wider copper ground pad and onboard components free area around the PCB screw mounting holes. This exclusive design reduces the chances of damaging any surrounding onboard components during the PC assembly process. Bigger copper ground pads also provide the added benefit of lower EMI disturbance for reduced noise interference across your system. * The above photos are for reference only. Long Lifespan Durable Black™ Solid Caps GIGABYTE X99 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE X99 series motherboards. 2x Copper PCB Design(2 oz Copper PCB) GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking. GIGABYTE Patented DualBIOS™ Design GIGABYTE DualBIOS™ means that you motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process. Q-Flash Plus GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or memory needing to be installed. Do you have the latest CPU supported by your GIGABYTE motherboard but do not have the latest BIOS installed yet? This is no longer a problem with the new Q-Flash Plus feature. By simply downloading the latest BIOS and renaming it on a USB thumb drive, and plugging it into the dedicated port, you can now flash the BIOS automatically without the need to press any buttons or even the need of onboard memory or CPU. Utilizing the ITE EC 8951E controller, GIGABYTE X99 motherboard BIOS can be updated even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally. Thunderbolt™ Ready GIGABYTE X99 brings the expandability needed to make your system the ultimate one with an onboard pin header to accommodate the addition of a GIGABYTE Thunderbolt™ add-in card. The Thunderbolt™ controller can provide bandwidth of up to 20 Gbp/s, compared to a max of 10 Gbp/s on previous generation designs. This allows for incredible data transfer speeds when using high performance storage devices, while also supporting daisy-chaining of up to 12 devices and triple digital display support. * Thunderbolt™ card and cables not included. ** For a list of supported Thunderbolt™ add-in cards, please visit the GIGABYTE website. Intel® Core™ i7 Extreme Edition CPUs(Haswell-E) Intel® Core™ i7 Extreme Edition Processors are Intel’s first 8 core desktop CPUs and is the first to support DDR4 memory. These next generation 22nm CPUs delivers greater performance and energy efficiency as well as the industry’s highest level of discrete graphics performance by sporting 40 PCIe Gen.3 lanes, which GIGABYTE X99 motherboards are able to take full advantage of, delivering bandwidth totaling 320 Gb/s for the most demanding gamers or graphics intensive creation tasks such as video editing. On top of that, Intel® Core™ i7 Extreme Edition CPUs deliver 8 core (16 threaded) multitask processing, higher frequencies, as well as larger cache size. Additionally, GIGABYTE X99 users can draw even more performance out of their Extreme Edition CPUs, as they are fully unlocked for overclocking. With enhanced overclocking oriented options available on all GIGABYTE X99 series motherboards, users will be able to take full advantage of all the performance potential of Intel Extreme Edition CPUs. * CPU core count and PCIe bandwidth varies by CPU model. 4 Channel DDR4 The next generation of DRAM is here with DDR4. Featuring stock frequencies starting at 2133 MHz, DDR4 delivers up to 20% less energy consumption and twice as much density as the previous generation DDR3. DDR4 can help GIGABYTE X99 users to load their programs faster, increase responsiveness of their system and help them to handle heavy data tasks in a flash. GIGABYTE X99 motherboards provide 4 Channel DDR4 memory support across the entire range, bringing exceptionally fast memory access. GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS. Customized the APP Center’s look and behavior according to your taste in the Preferences Menu. EasyTune™ GIGABYTE EasyTune™ is a simple and easy-to-use Windows-based software application that allows users to fine-tune their system settings. • Adjust system and memory clocks and voltages in a Windows environment. • System-related information display without the need to install additional software. Overclocking Boost Your Frame Rates Get the most from your PC with easy to use GIGABYTE overclocking features. Smart Quick Boost Smart Quick Boost provides users with different levels of CPU frequency to choose to achieve desired system performance. Advanced CPU OC Advanced CPU OC allows users to set the CPU’s base clock, frequency and voltages, and integrated graphics frequency. Advanced DDR OC Advanced DDR OC allows users to set the memory clock with XMP profile support. 3D Power 3D Power allows users to change power phase, voltage, and frequency settings. Cloud Station™ Server GIGABYTE Cloud Station™ Server is composed of several GIGABYTE’s unique apps that allow your smart phone/tablet/PC devices to communicate, share resources, and control desktop PCs via wireless connection. HomeCloud HomeCloud allows users to share the files between your smart phone/tablet device and computer or back up the files from the device to the computer. HotSpot HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices. GIGABYTE Remote GIGABYTE Remote allows users to remotely control the mouse/keyboard/Windows Media Player on your computer from your smart phone/tablet device. Remote OC Remote OC allows users to remotely control their desktop PC with a powerful suite of software functions that Include overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed. Auto Green Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth-enabled smart phone/tablet device. When the device is out of the range of the computer’s Bluetooth receiver, the system will enter the specified power saving mode. Game Controller GIGABYTE Game Controller allows you to define your own hotkeys and change the mouse sensitivity, helping you make the most out of your keyboard and mouse in games. Hot Key: Create macro commands and define your own hotkeys to quickly perform the function your want. *Create the hotkeys by yourself on normal keyboard. Speed: Using the Sniper key you can switch the mouse sensitivity when you are in sniper mode for better sniper accuracy. With Speed Control Without Speed Control Enable mouse Sniper Mode to make your shot quick and stable. High DPI Mouse in sniper mode : Hard to focus CPU Support for Intel® Core™ i7 processors in the LGA2011-3 package L3 cache varies with CPU (Please refer “CPU Support List” for more information.) Chipset Intel® X99 Express Chipset Memory 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. 4 channel memory architecture Support for DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules Support for RDIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operates in non-ECC mode) (Please refer “Memory Support List” for more information.) Audio Creative® Sound Core 3D chip Support for Sound Blaster Recon3Di TI Burr Brown® OPA2134 operational amplifier High Definition Audio 2/5.1-channel Support for S/PDIF Out LAN Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit) Expansion Slots 2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots. 2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4) * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode. * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode. (All PCI Express x16 slots conform to PCI Express 3.0 standard.) 3 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) Multi-Graphics Technology Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology * The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to “1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration.” Storage Interface Chipset: 1 x M.2 PCIe connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x2/x1 SSD support) 1 x SATA Express connector 6 x SATA 6Gb/s connectors (SATA3 0~5) Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed. (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.) Chipset: 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only (An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.) USB Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset + Renesas® uPD720210 USB 3.0 Hub: 4 x USB 3.0/2.0 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connectorŠ 1 x 8-pin ATX 12V power connector 1 x PCIe power connector 1 x I/O shield audio LED power connector 1 x heatsink LED power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 10 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt add-in card connectorŠ 1 x Clear CMOS jumper 1 x CPU mode switch 1 x audio gain control switch Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 6 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x optical S/PDIF Out connector 1 x RJ-45 port 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone) 2 x Wi-Fi antenna connector holes I/O Controller iTE® I/O Controller Chip H/W Monitoring System voltage detection CPU/System/Chipset temperature detection CPU/CPU OPT/System fan speed detection CPU/System/Chipset overheating warning CPU/CPU OPT/System fan fail warning CPU/CPU OPT/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ Support for Q-Flash Plus PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS Ambient LED EasyTune EZ Setup Fast Boot Game Controller Cloud Station ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton® Internet Security (OEM version) Intel® Smart Response Technology Operating System Support for Windows 8.1/8/7 Form Factor E-ATX Form Factor; 30.5cm x 26.4cm
