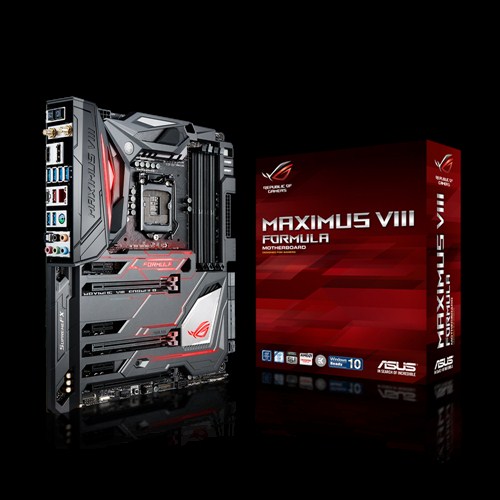

عربىProduct Description ASUS Republic of Gamers Maximus VIII Formula Motherboard Perfect your build from cooling to color LGA1151 socket for 6th-gen Intel® Core™ desktop processors. Dual DDR4 3733 (OC) support Best gaming cooling – CrossChill EK for both air and liquid cooling Best gaming lighting – Three-way RGB illumination, Aura 4-pin RGB-strip header & lighting control Best gaming audio – Reinvented SupremeFX 2015 with intuitive Sonic Studio II Best gaming performance – 5-Way Optimization with Auto-Tuning, second-gen T-Topology, and OC-friendly design Best gaming networking – Best-in-class Intel® Gigabit Ethernet, LANGuard and GameFirst technologies Best gaming protection – ROG Amor plus carefully-selected premium components for maximum durability Best gaming connectivity – 2×2 802.11ac MU-MIMO Wi-Fi, U.2 and M.2, plus Intel-powered USB 3.1 Type A+C ROG gives you more – More gaming-oriented utilities, all free! Learn more about the ASUS MAXIMUS VIII FORMULA Model Brand ASUS Series ROG Model MAXIMUS VIII FORMULA Supported CPU CPU Socket Type LGA 1151 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1151) Supported CPU Technologies Turbo Boost Technology 2.0 Chipsets Chipset Intel Z170 Memory Number of Memory Slots 4×288pin Memory Standard DDR4 3733*(*O.C.)/ 3600*/ 3500*/ 3466*/ 3400*/ 3300*/ 3200*/ 3000*/ 2800*/ 2666*/ 2400*/ 2133 Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray) 1 x PCIe 3.0/2.0 x16 (x4 mode, black) PCI Express x1 3 x PCIe 2.0 x1 (black) Other Slots 3 x PCI Express 2.0 x1 Storage Devices SATA 6Gb/s 6 x SATA 6Gb/s port(s), by Intel Z170 chipset 2 x SATA 6Gb/s port(s), black, by ASMedia ASM1061 controller *3*3: These SATA ports are for data hard drives only. ATAPI devices are not supported. SATA Express 2 x SATA Express port M.2 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) *1 *1: The The M.2 slot shares bandwidth with U.2 slot and SATA Express 1 slot. SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Integrated Graphics Processor Multi-VGA output support: HDMI/DisplayPort ports – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 512MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Onboard Audio Audio Chipset ROG SupremeFX 2015 Audio Channels 8 Channels Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Wireless LAN Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Bluetooth Bluetooth V4.1 Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port HDMI 1 x HDMI RJ45 1 x RJ45 DisplayPort 1 x DisplayPort USB 3.1 1 x USB 3.1 (red) Type-A 1 x USB 3.1 (black) Type-C USB 3.0 8 x USB 3.0 (blue) S/PDIF Out 1 x Optical Audio Ports 5 Ports Antenna Connectors 2 x Wi-Fi antenna port(s) Internal I/O Connectors Onboard USB 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) Other Connectors 1 x U.2 port 1 x Aura RGB Strip Headers 1 x CPU Fan connector(s) (4-pin) 1 x CPU OPT Fan connector(s) (4-pin) 4 x Chassis Fan connector(s) (4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 3 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Water Pump header (4-pin) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x System panel connector Physical Spec Form Factor ATX Dimensions (W x L) 12.0″ x 9.6″ Power Pin 24 Pin Features Features Multi-GPU Support: Supports NVIDIA Quad-GPU SLI Technology Supports AMD 3-Way CrossFireX TechnologyROG Exclusive Features: CrossChill EK (Hybrid air and liquid cooling) ROG Armor (including top cover and SECC steel backplate) ROG RAMCache Start Button Reset Button ROG Aura – Aura Lighting Control – Aura RGB Strip Headers Extreme Engine Digi+: – MicroFine Alloy Chokes – NexFET Power Block MOSFET – 10K Black Metallic Capacitors Mem TweakIt KeyBot II – One-click Overclocking – X.M.P. – DirectKey – ClrCMOS – Power On UEFI BIOS features: – O.C. Profile – GPU.DIMM Post – Tweakers’ Paradise – ROG SSD Secure Erase – Graphic Card Information Preview ROG RAMDiskSpecial Features: OC Design – ASUS PRO Clock Technology – Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App ASUS Wi-Fi GO! – Wi-Fi GO! Function: Cloud GO!, Media Streaming Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send – Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems ASUS Exclusive Features: – MemOK! – AI Suite 3 – Ai Charger+ – Anti-Surge – USB 3.1 Boost – Disk Unlocker – Mobo Connect – PC Cleaner Remote Entertainment – Media Streamer – HyStream ASUS Quiet Thermal Solution: – ASUS Fan Xpert 3 ASUS EZ DIY: – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS USB BIOS Flashback – ASUS UEFI BIOS EZ Mode – Multi-language BIOS – Push Notice – Media Streamer ASUS Q-Design: – ASUS Q-Shield – ASUS Q-Code – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector RAMCacheOperating System Support: Windows 10, 64bit Windows 8.1, 64bit Windows 7, 32bit/64bit Manageability: WfM2.0, DMI3.0, WOL by PME, PXE Packaging Package Contents Accessories: User’s manual I/O Shield 8 x SATA power cable 1 x ASUS 2-Way/3-Way SLI bridge 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant) 1 x Q-connector(s) (1 in 1) 1 x 12 in 1 ROG Cable Label(s) ROG Fan Label 1 x ROG Door Hanger(s) 1 x Extension Cable for RGB strips (80 cm)
