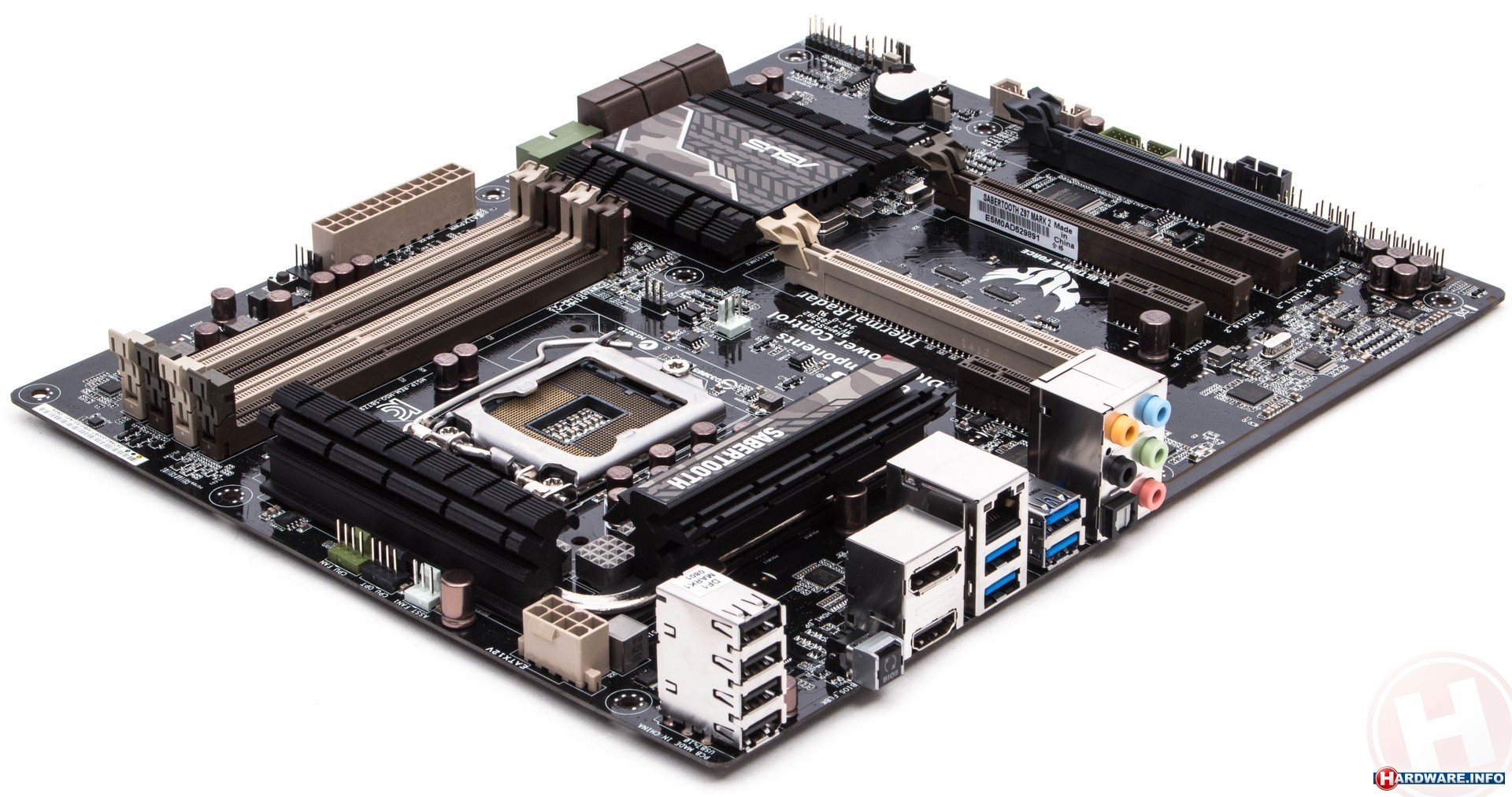

Asus Sabertooth Z97 Mark 2

Product Description Asus Sabertooth Z97 Mark 2 Review TUF ATX Intel® Z97 military-grade motherboard with advanced cooling and an even more accessible price LGA1150 Socket for the 5th, New 4th and 4th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors Intel® Z97 Express Chipset TUF ICe – Your Total Cooling Commander Thermal Radar 2 – Customized Fan Tuning, Complete System Cooling TUF Components [TUF 10K Ti-Caps, TUF New Alloy Choke & MOSFETs; Certified by Military-standard] – Certified for Tough Duty Server-grade Tests – Systematically-tested Stability ESD(Anti-Surge) – Strong ESD Protection for Extended Component Lifespan Quoted from: Home site Asus Sabertooth Z97 Mark 2 Technical Specifications CPU Make Chipset Form Factor CPU socket Total RAM Total USB Motherboard Details Intel Z97 ATX LGA 1150 32GB 12 USB slots GPU Interface GPU Onboard SLI Crossfire Expansion Slots Motherboard Graphics PCIe v3.0 3 Nvidia SLI GPUs 3 AMD/ATI Crossfire GPUs 3 x PCIe 2.0 x1 1 x PCIe 2.0 x16 2 x PCIe 3.0 Memory Type Memory Type(ECC) Memory Channel Memory Capacity Memory Total Memory Slots Memory Speed Motherboard Memory 4xDDR3 Non-ECC Dual 32GB DDR3 32GB 4xDIMM DDR3 1066Mhz, DDR3 1333Mhz, DDR3 1600Mhz, DDR3 1866Mhz, SATA 1 SATA 2 SATA 3 SATA Speed External SATA HDD RAID Motherboard SATA 6 x SATA 3 6Gb/s Internal USB Internal I/O Internal I/O Connectors 2 x USB 2.0 2 x USB 3.0 1 x 24 pin power connector 1 x 8 pin power connector 1 x 3 pin power connector 1 x 4 pin fan connector 4 x fan header 1 x S/PDIF connector System Panel Connection Back Panel USB Back Panel I/O Back Panel Connectors 4 x USB 2.0 4 x USB 3.0 Display Port Line In connector Line Out Connector Mic In connector Audio Input Output
