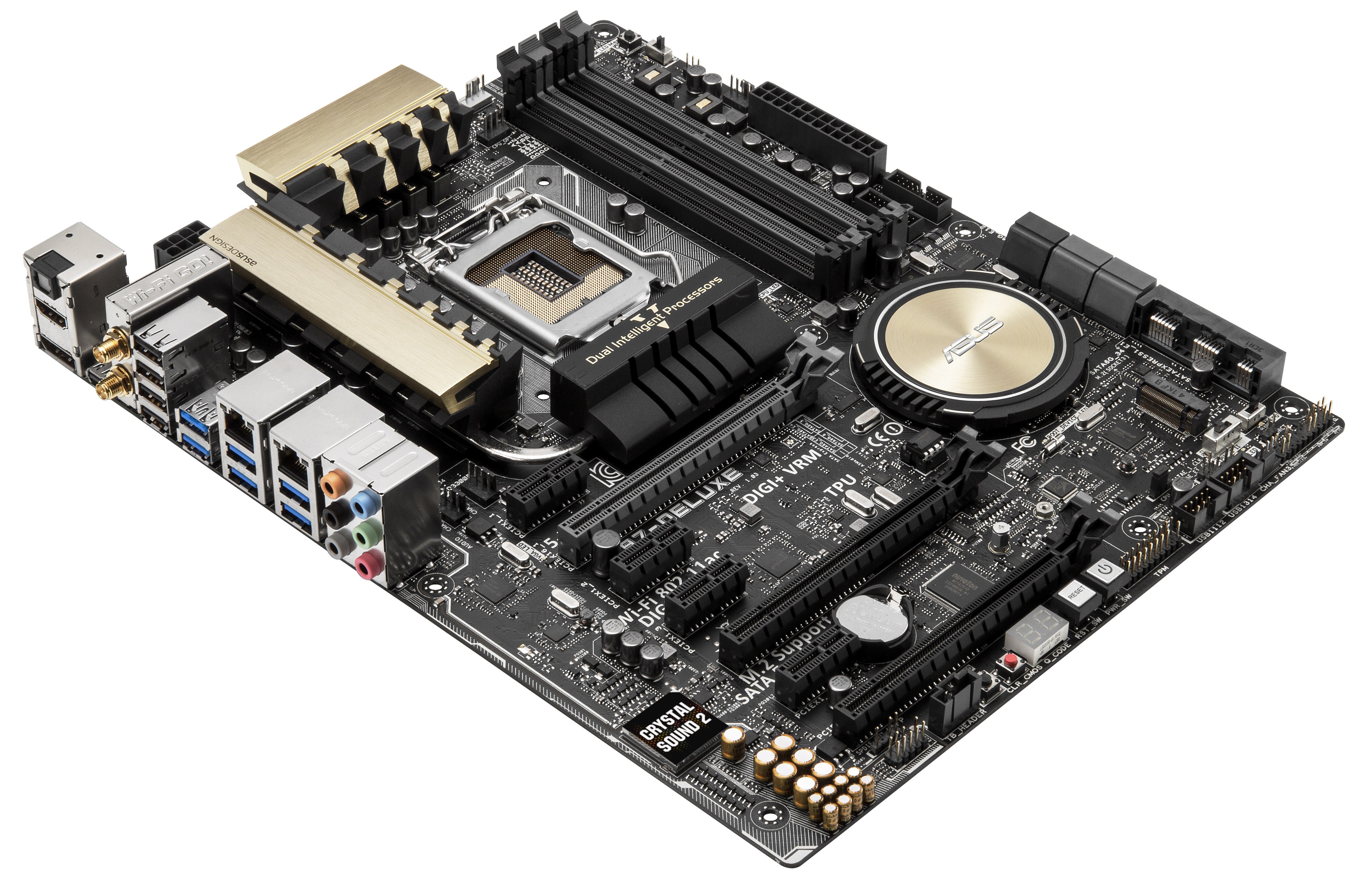

Asus Z97-deluxe(nfc & Wlc)

Product Description Specifications ASUS Z97-Deluxe (NFC + WFC) Size ATX CPU Interface LGA-1150 Chipset Intel Z97 Memory Slots Four DDR3 DIMM slots supporting up to 32 GB Up to Dual Channel, 1333-3300 MHz Video Outputs HDMI (4096×2160 at 24 Hz or 2560×1600 at 60 Hz) DisplayPort (4096×2160 at 25 Hz or 3840×2160 at 60 Hz) Mini-DisplayPort (4096×2160 at 24 Hz or 3840×2160 at 60 Hz) Onboard LAN Intel I218V Intel I211-AT Broadcom 802.11ac 2T2R Onboard Audio Realtek ALC1150 with Crystal Sound 2 Expansion Slots 2 x PCIe 3.0 x16 (x16 or x8/x8) 1 x PCIe 2.0 x4* 4 x PCIe 2.0 x1 Onboard SATA/RAID 6 x SATA 6 Gbps Ports (PCH)* 1 x SATA Express (PCH)* 1 x M.2 PCIe and SATA (PCH)* 1 x SATA Express (ASMedia) with 2x SATA 6 Gbps 2 x SATA 6 Gbps (ASMedia) *The PCIe x16_3, USB3_E56 and SATAExpress_E1 connectors share the same bandwidth. *M.2 Socket 3 shares bandwidth with SATAExpress_1 *Use ThunderboltEX II/DUAL card in PCIeX16_3 slot, configure the bandwidth to x4 mode in BIOS USB 3.0 4 x USB 3.0 (PCH) [4 rear panel] 6 x USB 3.0 (ASMedia) [2 rear panel, 2 headers] Onboard 10 x SATA 6 Gbps ports 1 x M.2 2 x SATA Express 2 x USB 3.0 Headers 2 x USB 2.0 Headers 1 x TPM Header 6 x Fan Headers 1 x EZ XMP Switch 1 x Thunderbolt Header TPU Switch EPU Switch Power Button Reset Button Clear CMOS Button MemOK! Button USB BIOS Flashback Button DirectKey Header Front Audio Header Front Panel Header Power Connectors 1 x 24-pin ATX 1 x 8-pin CPU Fan Headers 1 x CPU (4-pin) 1 x CPU_OPT (4-pin) 4 x CHA (4-pin) IO Panel 4 x USB 2.0 6 x USB 3.0 HDMI DisplayPort Mini-DisplayPort Wi-Fi GO! Module (802.11ac 2T2R, BT v4) 2 x Ethernet (Intel I218V/I211-AT) Audio Jacks (Realtek ALC1150) Warranty Period 3 Years
