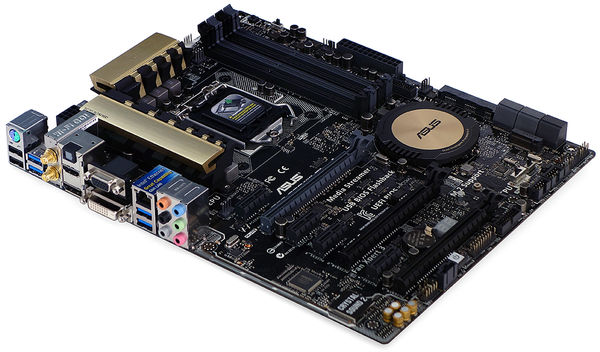

Asus Z97-pro (Wi-fi Ac)

Product Description SPECIFICATIONS OF ASUS Z97-PRO(Wi-Fi ac) Model Brand ASUS Model Z97-PRO(Wi-Fi ac) Supported CPU CPU Socket Type LGA 1150 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) Chipsets Chipset Intel Z97 Memory Number of Memory Slots 4×240pin Memory Standard DDR3 3200(OC)/3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333 Maximum Memory Supported 32GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 2 (single at x16 or dual at x8/x8 mode) PCI Express 2.0 x16 1 (x4 mode) PCI Express x1 4 Storage Devices SATA 6Gb/s 6 x SATA 6Gb/s SATA Express 1 x SATA Express M.2 1 x M.2 Socket 3 with M Key SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Onboard Audio Audio Chipset Realtek ALC1150 Audio Channels 8 Channels Onboard LAN LAN Chipset Intel I218-V Max LAN Speed 10/100/1000Mbps Wireless LAN Wi-Fi 802.11ac Bluetooth Bluetooth 4.0 Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port Video Ports 1 x DVI-D 1 x VGA HDMI 1 x HDMI DisplayPort 1 x DisplayPort USB 3.0 4 x USB 3.0 USB 1.1/2.0 2 x USB 2.0 S/PDIF Out 1 x Optical Antenna Connectors 1 x ASUS Wi-Fi GO! module Internal I/O Connectors Onboard USB 4 x USB 3.0 + 4 x USB 2.0 Other Connectors 1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support 1 x CPU OPT Fan connector (4-pin) 4 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control 1 x Front panel audio connector (AAFP) 1 x S/PDIF out header 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x TPM connector 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x System Panel(Q-Connector) 1 x MemOK! button 1 x Clear CMOS jumper 1 x USB BIOS Flashback button 1 x DRCT(Direct Key) connector 1 x TPU switch (advanced two-stage adjustments) 1 x EPU switch 1 x EZ XMP switch 1 x Power-on button Physical Spec Form Factor ATX Dimensions 12.0″ x 9.6″ Power Pin 24 Pin Features Features 5-Way Optimization by Dual Intelligent Processors 5 DIGI+ Power Control -CPU Power -Industry leading digital 12-phase power design – ASUS CPU power utility – DRAM Power – Industry leading digital 2-phase DRAM power design – ASUS DRAM power utility TPU – Auto Tuning, TPU, GPU Boost, 2-level TPU switch EPU – EPU, EPU switch Fan Xpert 3: featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo App: featuring system performance tuning, network priority, and audio scene configuration for selected applications. UEFI BIOS – Most advanced options with fast response time M.2 & SATA Express onboard -The latest transfer technologies with up to 10Gb/s data-transfer speeds Special Memory O.C. Design -Superb memory O.C. capability under full load by minimizing the coupling noise and signal reflection effect ASUS HomeCloud Server Remote GO! – Remote GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer – Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems Media Streamer – Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go! – Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems Turbo APP – Perform each application with tailored performance, network priority and audio configuration for your needs Turbo LAN – Experience smooth online gaming with lower pings and less lags Crystal Sound 2 – Feel the sound power with different usage scenarios. Steam support -Compatible with the most fun gaming platform under Windows system USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS download scheduling Wi-Fi GO! – Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer – Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems Packaging Package Contents ASUS Z97-PRO(Wi-Fi ac) Motherboard 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 4 x Serial ATA 6.0Gb/s cables 1 x ASUS SLI bridge connector 1 x ASUS Q-Shield 1 x 2 in 1 Q-connector 1 x user’s manual 1 x Z97 Series Exclusive Feature manual Quick Info Warranty Limited Warranty period (parts): 3 years Limited Warranty period (labor): 3 years
