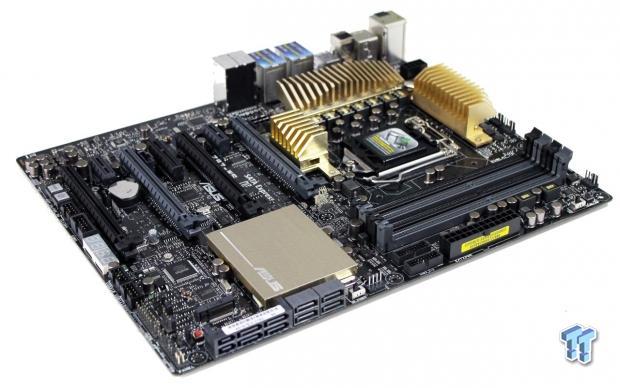

Asus Z97-ws

Product Description Specifications of ASUS Z97-WS Model Brand ASUS Model Z97-WS Supported CPU CPU Socket Type LGA 1150 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) Chipsets Chipset Intel Z97 Memory Number of Memory Slots 4×240pin Memory Standard DDR3 3400(OC)/3200(OC)/3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333 Maximum Memory Supported 32GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 4 (single at x16 , dual at x16 / x16 , triple at x16/ x8/ x8, Quad at x8/ x8/ x8/ x8) PCI Express x4 1 PCI Express x1 2 Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s SATA Express 2 x SATA Express M.2 1 x M.2 SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Onboard Audio Audio Chipset Realtek ALC1150 Audio Channels 8 Channels Onboard LAN LAN Chipset Intel i210 Second LAN Chipset Intel I218LM Max LAN Speed Dual 10/100/1000Mbps Rear Panel Ports HDMI 1 x HDMI DisplayPort 1 x Display 1 x miniDisplay USB 3.0 6 x USB 3.0 USB 1.1/2.0 2 x USB 2.0 eSATA 1 x eSATA S/PDIF Out 1 x Optical Internal I/O Connectors Onboard USB 4 x USB 3.0 + 4 x USB 2.0 Other Connectors – 1 x 4-pin CPU Fan connector supports both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control – 1 x 4-pin CPU Optional Fan connector (CPU_OPT) – 4 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control – 1 x Front panel audio connector (AAFP) – 1 x S/PDIF out header – 1 x Thunderbolt header (5-pin) for Thunderbolt Add-on Card support – 1 x TPM connector – 1 x chassis instrusion header – 1 x COM port – 1 x 24-pin EATX Power connector – 2 x 8-pin EATX 12V Power connector – 1 x 6-pin EATX 12V_1 Power connector – System Panel (Q-Connector) – 1 x Mem OK! button – 1 x Clear CMOS button – 1 x DRCT(Direct Key) connector – 1 x Dr.Power switch – 1 x EPU switch – 1 x TPU switch (advanced two-stage adjustments) – 1 x EZ XMP switch – 1 x Power-on switch – 1 x Reset switch Physical Spec Form Factor ATX Dimensions 12.0″ x 9.6″ Power Pin 24 Pin Features Features ASUS Dual Intelligent Processors 5 with 5-Way Optimization -5-Way Optimization tuning key perfectly consolidates ASUS exclusive DIGI+ Power Control, TPU, EPU, Fan Xpert 2 and ASUS graphics card, quickly optimize the digital power setting, system performance, power saving and whole system cooling configuration with just a click. CPU Power -Industry leading digital 8-phase power design -ASUS CPU power utility DRAM Power -Industry leading digital 2-phase DRAM power design -ASUS DRAM power utility ASUS EPU -EPU, EPU switch ASUS TPU -Auto Tuning, TurboV, GPU Boost, TPU switch ASUS Fan Xpert 3 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS Graphics card Tuning featuring ASUS graphics cards’ power level and fan tuning function for optimized speed control ASUS Exclusive Features -Network iControl featuring instant network bandwidth domination for top network program in use -USB 3.0 Boost featuring speedy USB 3.0 transmission -USB Charger+ featuring quick-charging function for all smart devices -Ai Charger+ -Disk Unlocker -AI Suite 3 -Anti Surge -MemOK! ASUS Quiet Thermal Solution -ASUS Fan Xpert 3 featuring Fan Auto Tuning function for optimized speed control -ASUS Fanless Design: Heat-pipe solution ASUS EZ DIY -ASUS USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS download scheduling -ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface -ASUS O.C. Tuner -ASUS CrashFree BIOS 3 -ASUS EZ Flash 2 ASUS Q-Design -ASUS Q-code (4 digits display) -ASUS Q-Shield -ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) -ASUS Q-Slot -ASUS Q-DIMM -ASUS Q-Connector – 4 PCIe x 16 slots -ProCool Power Master! -Q-Code Logger -ASUS Dr.Power Packaging Package Contents ASUS Z97-WS Motherboard 8 x Serial ATA 6Gb/s cables 1 x COM port bracket 1 x USB+ 1394 bracket 1 x ASUS 4-Way SLI bridge connector 1 x ASUS 3-Way SLI bridge connector 1 x ASUS SLI bridge connector 1 x 2 in 1 Q-connector 1 x User’s manual 1 x I/O Shield
