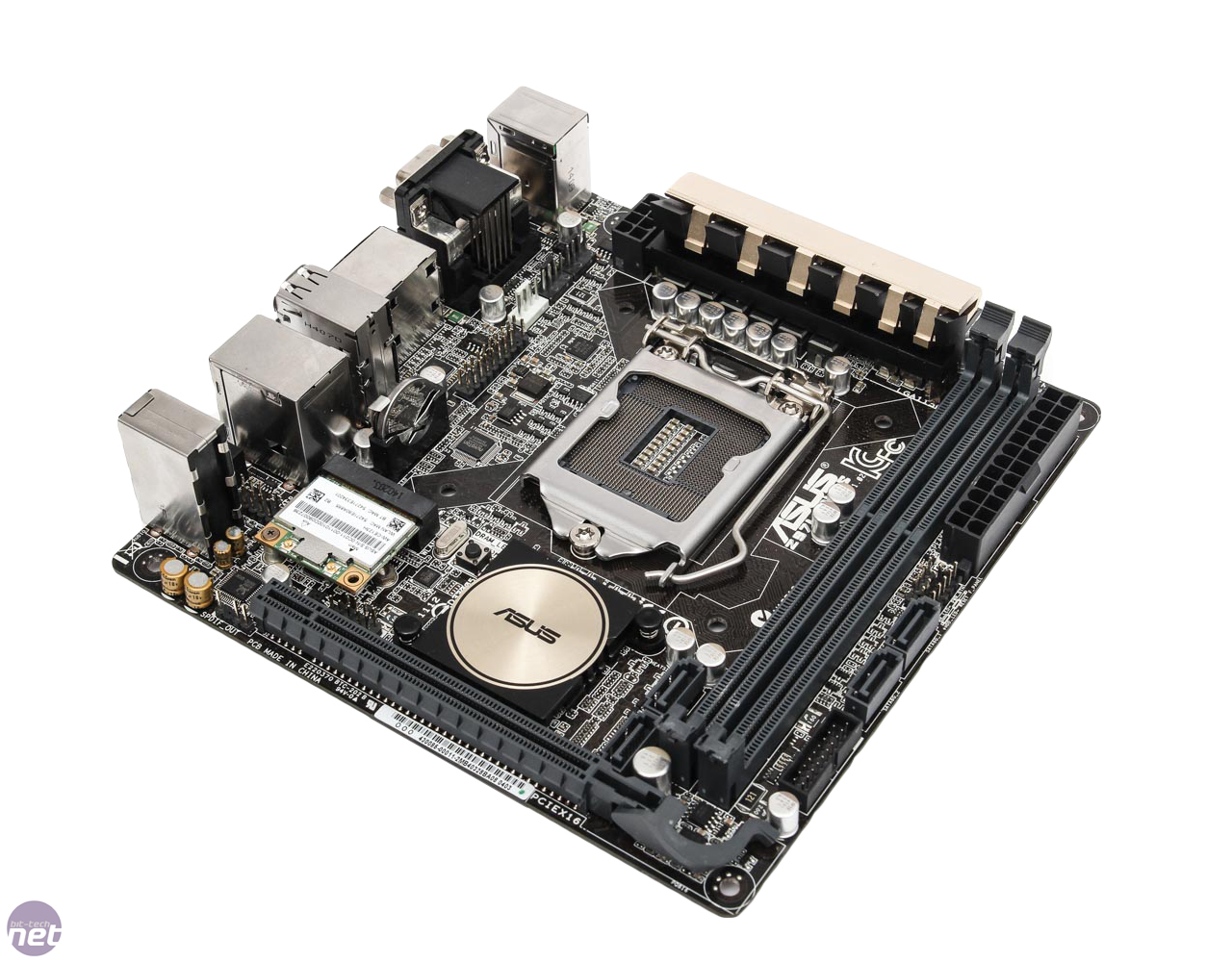

Asus Z97i-plus

Product Description Specifications of ASUS Z97I-PLUS Model Brand ASUS Model Z97I-PLUS Supported CPU CPU Socket Type LGA 1150 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) Chipsets Chipset Intel Z97 Memory Number of Memory Slots 2×240pin Memory Standard DDR3 3200(OC)/3100(OC)/3000(OC)/2933(OC)/2800(OC)/2666(OC)/2600(OC)/2500(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1800(OC)/1600/1333 Maximum Memory Supported 16GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 1 Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s M.2 1 x M.2 Socket 3 with M Key SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Onboard Audio Audio Chipset Realtek ALC892 Audio Channels 8 Channels Onboard LAN LAN Chipset Intel I218-V Max LAN Speed 10/100/1000Mbps Wireless LAN Wi-Fi 802.11ac Bluetooth Bluetooth 4.0 Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port Video Ports 1 x DVI-D 1 x VGA HDMI 1 x HDMI DisplayPort 1 x DisplayPort USB 3.0 4 x USB 3.0 USB 1.1/2.0 4 x USB 2.0 S/PDIF Out 1 x Optical Internal I/O Connectors Onboard USB 2 x USB 3.0 + 2 x USB 2.0 Other Connectors 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support 2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control 1 x System Panel connector (with Q-Connector) 1 x Front panel audio connector (AAFP) 1 x clear CMOS jumper 1 x S/PDIF out header 1 x speaker header 1 x TPM header 1 x MemOK! Button Physical Spec Form Factor Mini ITX Dimensions 6.7″ x 6.7″ Power Pin 24 Pin Features Features ASUS 5X Protection -ASUS motherboards safeguard your PC with 5X Protection: DIGI+ Power Control, DRAM Fuse, ESD Guards, High-Quality Solid Capacitors, and Stainless Steel Back I/O to ensure the best quality, reliability, and durability. ASUS DIGI+Power Control -CPU Power -Industry leading 6-phase power design -ASUS CPU power utility -DRAM Power -Industry leading 2-phase DRAM power design -ASUS DRAM power utility ASUS DRAM Fuse -Enhanced DRAM overcurrent protection and short circuit damage prevention ASUS ESD Guards -Strong ESD protection for extended component lifespan ASUS High-Quality Solid Capacitors -2.5x Longer lifespan with excellent durability ASUS Stainless Steel Back I/O -3x More durable corrosion-resistant coating Fan Xpert 3 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control UEFI BIOS-Most advanced options with fast response time M.2 onboard-The latest transfer technology with up to 10Gb/s data-transfer speeds ASUS HomeCloud Server ASUS Wi-Fi GO! -Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer -Wi-Fi GO! Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems Media Streamer -Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go! -Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems Turbo LAN -Experience smooth online gaming with lower pings and less lags ASUS Audio Feature -Feel the sound power with different usage scenarios. Push Notice-Monitor your PC status with smart devices in real time USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS download scheduling UEFI BIOS EZ Mode featuring friendly graphics user interface -O.C. Tuner -CrashFree BIOS 3 -EZ Flash 2 Q-Design -ASUS Q-Shield -ASUS Q-Slot -ASUS Q-DIMM -ASUS Q-Connector Packaging Package Contents ASUS Z97I-PLUS Motherboard 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x 2-in-1 Wi-Fi antenna connector 4 x Serial ATA 6.0Gb/s cables 1 x ASUS Q-Shield 1 x ASUS Q-Connector 1 x User Manual
