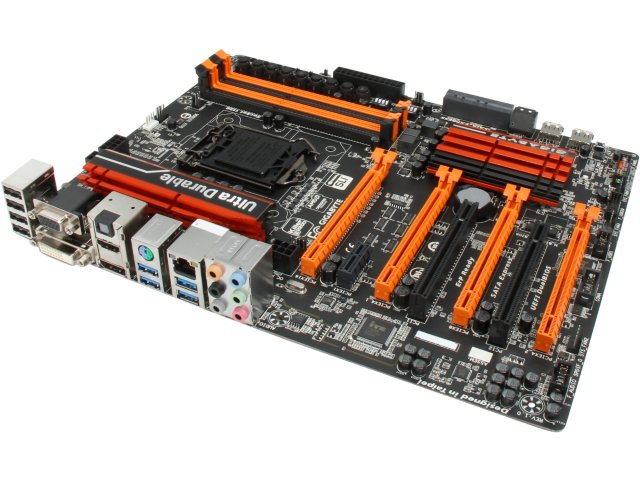

Gigabyte Ga-z97x-soc Force

Product Description CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU (Please refer “CPU Support List” for more information.) Chipset Intel® Z97 Express Chipset Memory 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 3300(O.C.) / 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) Onboard Graphics Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz or 2560×1600@60Hz * Support for HDMI 1.4a version. 1 x DisplayPort, supporting a maximum resolution of 4096×2160@24Hz or 3840×2160@60Hz * Support for DisplayPort 1.2 version. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Audio Realtek® ALC1150 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Qualcomm® Atheros Killer E2201 chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4_1 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode. * When installing a x8 or above card in the PCIEX4_1 slot, make sure to set PCIE Slot Configuration (CPU) in BIOS Setup to x4. (Refer to Chapter 2, “BIOS Setup,” “Peripherals,” for more information.) * The PCIEX4_2 slot shares bandwidth with the PCIEX1 slots. The PCIEX1 slot will become unavailable when a PCIe x4 expansion card is installed. (The PCIEX16, PCIEX8 and PCIEX4_1 slots conform to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCIEX4_2 and PCIEX1 slots conform to PCI Express 2.0 standard.) 2 x PCI slots Multi-Graphics Technology Support for 4-Way/3-Way/2-Way AMD CrossFire™/2-Way NVIDIA® SLI™ technology Storage Interface Chipset: 1 x SATA Express connector 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 (SATA Express and SATA3 4/5 connectors can only be used one at a time.) USB Chipset: 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header) 8 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports onboard, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connectorŠ 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x OC PEG power connector 1 x SATA Express connectorŠ 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 6 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header 2 x USB 2.0/1.1 ports 1 x serial port header 1 x Clear CMOS jumper 1 x power button 1 x reset button 1 x Clear CMOS button 1 x Gear button 1 x OC Turbo buttonŠ 1 x OC Tag button 1 x OC Trigger switch 1 x CPU BCLK Down button 1 x CPU BCLK Up button 1 x CPU Ratio Down button 1 x CPU Ratio Up button 1 x Memory Safe button 1 x Settings Lock button 1 x Direct to BIOS button 1 x OC DIMM switch 1 x OC PCIe switch 1 x OC Ignition button 1 x Clear Battery button 2 x BIOS switches 1 x onboard voltage measurement module Back Panel Connectors 4 x USB 2.0/1.1 ports 4 x USB 3.0/2.0 ports 1 x optical S/PDIF Out connector 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x DisplayPort 1 x PS/2 keyboard/mouse port 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) I/O Controller iTE I/O Controller Chip H/W Monitoring System voltage detection CPU/System/Chipset temperature detection CPU/CPU OPT/System fan speed detection CPU/System overheating warning CPU/CPU OPT/System fan fail warning CPU/CPU OPT/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup Fast Boot ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton® Internet Security (OEM version) Intel® Rapid Start Technology Intel® Smart Connect Technology Intel® Smart Response Technology Operating System Support for Windows 8.1/8/7 Form Factor ATX Form Factor; 30.5cm x 24.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website
