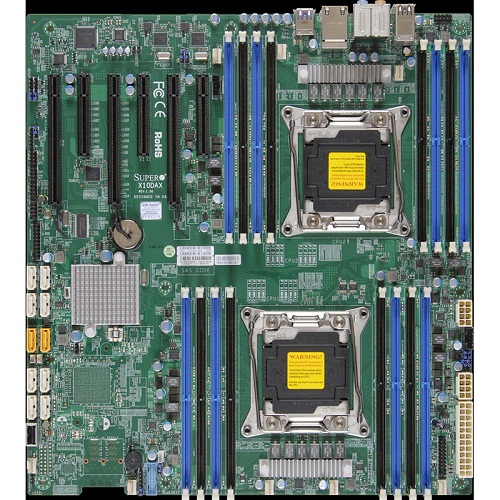

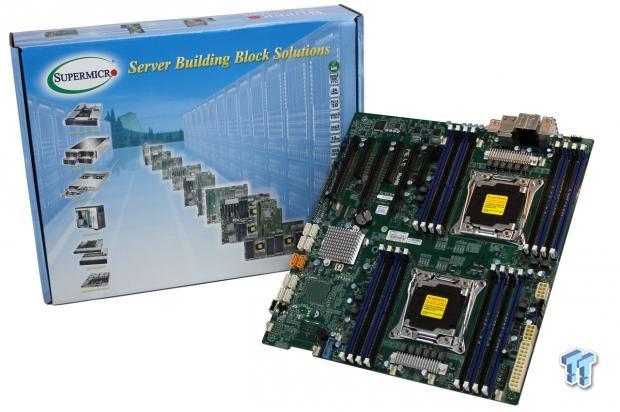

Supermicro X10dax Dp Motherboard

Product SKUsMBD-X10DAX -BX10DAX (Bulk Pack) Physical StatsForm FactorE-ATXDimensions12″ x 13″ (30.5cm x 33.0cm) Processor/CacheCPUIntel® Xeon® processor E5-2600 v3 family (up to 160W TDP **)Dual Socket R3 (LGA 2011)Cores / CacheUp to 18 Cores / Up to 45MB CacheSystem BusQPI up to 9.6 GT/sNote** Motherboard supports this maximum TDP. Please verify your system can thermally support. System MemoryMemory Capacity16x 288-pin DDR4 DIMM slotsUp to 1TB ECC LRDIMM, 512GB ECC RDIMMMemory Type2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM SizesRDIMM: 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GBMemory Voltage1.2 VError DetectionCorrects single-bit errors On-Board DevicesChipsetIntel® C612 Express chipsetAHCI SATASATA3 (6Gbps); RAID 0, 1, 5, 10SCU SATASATA3 (6Gbps); RAID 0, 1, 5, 10Network ControllersIntel® i210 Dual Port Gigabit EthernetVirtual Machine Device Queues reduce I/O overheadSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputAudioRealTek ALC888 7.1 High Definition Audio with S/PDIF header Input / OutputSATA10x SATA3 (6Gbps) portsLAN2x RJ45 Gigabit Ethernet LAN portsUSB6x USB 3.0 ports (4 rear + 2 via header)5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)Audio7.1 HD Audio with optical S/PDIFDOMDOM (Disk on Module) power connectorTPM1x TPM 1.2 20-pin HeaderChassis (Optimized for X10DAX )2U Chassis:SC213A-R740LPBSC825TQ-R740LPBSC826BA-R920LPB3U Chassis:SC835BTQ-R1K28BSC835TQ-R920BSC836BA-R1K28BSC836BA-R920BMid/Mini Tower Chassis:SC732D4F-903BSC732i-865B4U / Tower Chassis:SC743TQ-1200BSC745TQ-R920BSC747TG-R1400B-SQSC846BA-R920BImportant Chassis NotesTo support the new generation Intel® Xeon® processor-based motherboards,Revision M chassis is recommended. Please talk to your sales representative for details. Expansion SlotsPCI-Express3 PCI-E 3.0 x162 PCI-E 3.0 x81 PCI-E 2.0 x4 (in x8) System BIOSBIOS Type128Mb SPI Flash EEPROM with AMI BIOSBIOS FeaturesPlug and Play (PnP)PCI 2.3ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1 ManagementSoftwareNMISuperDoctor® 5Watch DogPower ConfigurationsACPI / APM Power ManagementPower-on mode for AC power recovery PC Health MonitoringVoltageMonitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.6 Phase-switching voltage regulatorFAN8x 4-pin fan headers (up to 8 fans)8x fans with tachometer monitoringStatus monitor for speed controlPulse Width Modulated (PWM) fan connectorsTemperatureMonitoring for CPU and chassis environmentCPU thermal trip supportThermal Control for 8x Fan ConnectorsThermal Monitor 2 (TM2) supportPECILEDCPU / System Overheat LEDSuspend static indicator LEDUID/Remote UIDOther Features
