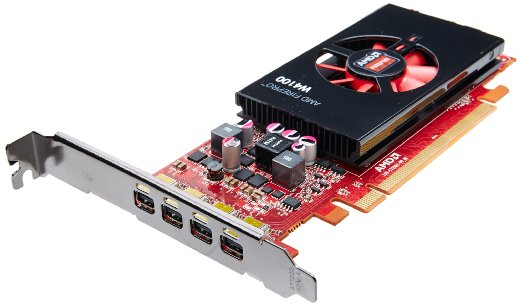

Amd Firepro W4100 Graphics Card

Product Description AMD FirePro W4100 Graphics Card Drive up to four displays simultaneously with the AMD FirePro W4100 Graphics Card while only consuming 50 watts at full tilt. The FirePro W4100 has 2GB of GDDR5 vRAM and 512 stream processors arranged in AMD’s GCN (Graphics Core Next) Architecture. The output panel of the card has four Mini DisplayPort 1.2 ports. Each output can support up to 4K (4096 x 2160) resolution. Not only for driving displays, the FirePro W4100 can be put to work as a hardware accelerator. Using its 512 stream processors, the W4100 can assist with tasks that require parallel processing, such as video or graphics rendering. This card supports industry standard APIs like OpenCL, OpenGL, and DirectX. At single precision, the GPU can crank out 645.1 GFLOPS. This card is compact and will fit in more compact chassis without crowding or overheating. The card features an active fansink which intakes air and blows it out across the components, quietly displacing hot air. GCN (Graphics Core Next) Architecture The 28nm GCN Architecture with more efficient process technology puts more transistors in less space, enabling an increase in processing power and graphics performance. AMD Eyefinity Support Drive up to four displays with a single graphics card (one display per output) for an immersive multitasking experience. OpenCL Support Lets professionals tap into the parallel computing power of modern GPUs and multicore CPUs to accelerate compute-intensive tasks. The FirePro W4100 supports the OpenCL 1.2 standard. AMD ZeroCore Power Technology Up to 95% idle power reduction by shutting down GPU when not under load. AMD PowerTune Technology AMD PowerTune technology is an intelligent system that performs real-time analysis of applications that utilize a GPU. In the event that an application is not making the most of the power available to the GPU, AMD PowerTune can improve that application’s performance by raising the GPU’s clock speed. Memory 2GB GDDR5 128-bit Interface 72 GB/s Bandwidth Compute Performance 512 Stream Processors 645.1 GFLOPS peak single precision floating point performance 40.3 GFLOPS peak double precision floating point performance Display Output 4 x Mini-DisplayPort 1.2 outputs Max resolution 4096 x 2160 API and OS Support DirectX 11.2 OpenGL 4.43 OpenCL 1.24 AMD Mantle Shader Model: 5.0 Microsoft Windows 8.1, Windows 7 and Windows Vista (32- or 64-bit) Linux (32- or 64-bit) Power Consumption <50 W maximum Cooling Discreet active cooling solution Form Factor Half-height/half-length, single-slot Bus Type PCI Express 3.0 x16 System Requirements Available PCIe x16 slot, 3.0 for optimal performance 2GB system memory Microsoft Windows 8.1, Windows 7, Windows Vista or Linux operating system (32- or 64-bit) Internet connection for driver installation Packaging Info Package Weight 1.1 lb Box Dimensions (LxWxH) 9.685 x 6.378 x 2.52″
