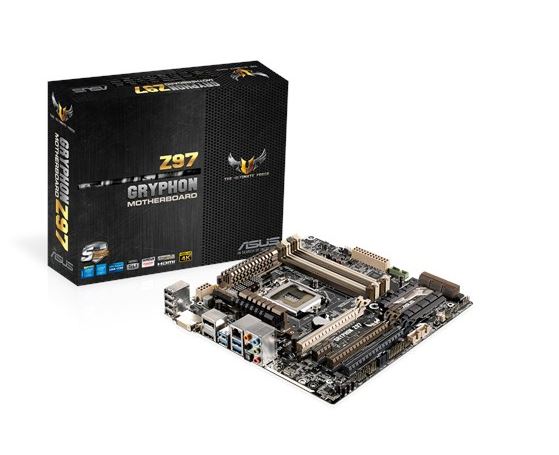

Asus Gryphon Z97

Product Description Specifications of ASUS GRYPHON Z97 Model Brand ASUS Model GRYPHON Z97 Supported CPU CPU Socket Type LGA 1150 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) Supported CPU Technologies Turbo Boost Technology 2.0 Chipsets Chipset Intel Z97 Memory Number of Memory Slots 4×240pin Memory Standard DDR3 1866/1600/1333 Maximum Memory Supported 32GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 2 (Single at x16, Dual at x8/x8) PCI Express 2.0 x16 1 (x4 mode) PCI Express x1 1 Storage Devices SATA 6Gb/s 6 x SATA 6Gb/s SATA RAID 0/1/5/10 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Onboard Audio Audio Chipset Realtek ALC892 Audio Channels 8 Channels Onboard LAN LAN Chipset Intel I218V Max LAN Speed 10/100/1000Mbps Rear Panel Ports Video Ports 1 x DVI-D HDMI 1 x HDMI DisplayPort 1 x DisplayPort USB 3.0 4 x USB 3.0 USB 1.1/2.0 4 x USB 2.0 S/PDIF Out 1 x Optical Internal I/O Connectors Onboard USB 2 x USB 3.0 + 4 x USB 2.0 Other Connectors 1 x CPU Fan connector (4-pin moss green) for both 4-pin (PWM mode) and 3-pin (DC mode) CPU coolers control with auto detection support 1 x CPU OPT Fan connector (4-pin Black) for both 4-pin(PWM mode) and 3-pin(DC mode) CPU coolers control 4 x Chassis Fan connectors (4-pin Black) for both 4-pin(PWM mode) and 3-pin(DC mode) CPU coolers control 1 x Assistant Fan connector (3-pin White) Front panel audio connector(AAFP) 24-pin EATX Power connector 8-pin EATX 12V Power connector System Panel (Q-Connector) 1 x USB BIOS Flashback button 1 x MemOK! Button 1 x DRCT(DirectKey) header 3 x T_Sensor (Thermal Sensor) headers 1 x S/PDIF Out header 1 x TPM header 1 x Clear CMOS jumper Physical Spec Form Factor Micro ATX Dimensions 9.6″ x 9.6″ Power Pin 24 Pin Features Features “Ultimate COOL!” Thermal Solution -TUF Thermal Radar 2 -TUF ICe “TUF ENGINE!” Power Design -8+2 Digital Phase Power Design -TUF Components (10K Ti-Cap, New Alloy Choke & MOSFET; certified by military-standard) -ASUS DIGI+ Power Control Utility “Safe & Stable!” Guardian Angel -TUF ESD Guards -MemOK! Other Special Features -USB 3.0 Boost featuring speedy USB 3.0 transmission -USB BIOS Flashback with USB BIOS Flashback Wizard for EZ BIOS download scheduling -USB Charger+ featuring quick-charging function for all smart devices -ASUS Remote GO! with Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer -ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface -Turbo LAN to experience smooth online gaming with lower pings and less lags -Push Notice monitors your PC status with smart devices in real time -AI Suite 3 -Ai Charger -ASUS Q-Connector -ASUS Q-Shield -ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) -ASUS Q-Slot -ASUS Q-DIMM -ASUS O.C. Profile -ASUS CrashFree BIOS 3 -EZ Update -Disk Unlocker -ASUS EZ Flash 2 -Multi-language BIOS Packaging Package Contents ASUS GRYPHON Z97 Motherboard 4 x Serial ATA 6Gb/s cables 1 x ASUS SLI bridge connector 7cm 1 x ASUS Q-Shield 1 x 2 in 1 Q-connector 1 x TUF Inside sticker 1 x TUF Certification card User’s manual
